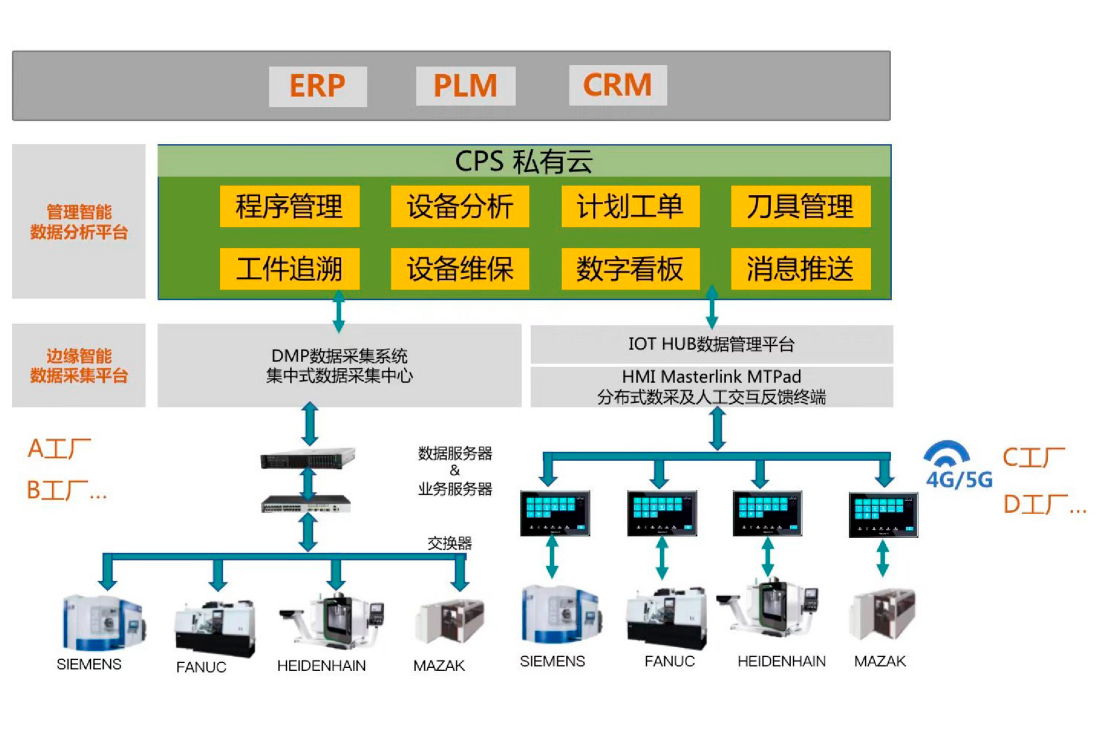

What is a collaborative intelligent manufacturing management system
The collaborative manufacturing management system is a comprehensive information management system for the workshop executive level of manufacturing enterprises. Based on the relevant data of human, machine, material, method, environment and measurement, it realizes the collaborative interaction and management of the business level, and realizes digital management and lean production.
Product function module

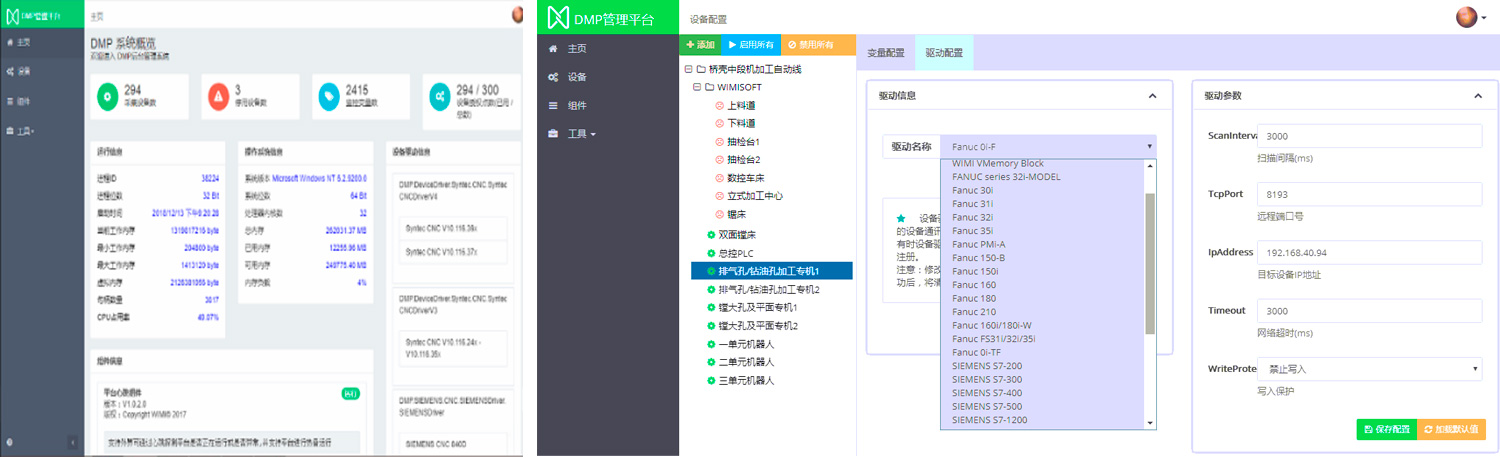

DMP data acquisition platform
● DMP data acquisition
platform is compatible with 95% controllers (CNC and PLC) on the market
● DMP acquisition platform can customize the variables and parameters to be
collected by the equipment, and configure different acquisition frequencies
● Support secondary development. The user (upper system developer) can develop
functional components, expand DMP functions, and realize user-defined logic
● Support multiple interfaces: OPC UA, Web Service, Web API, MQTT

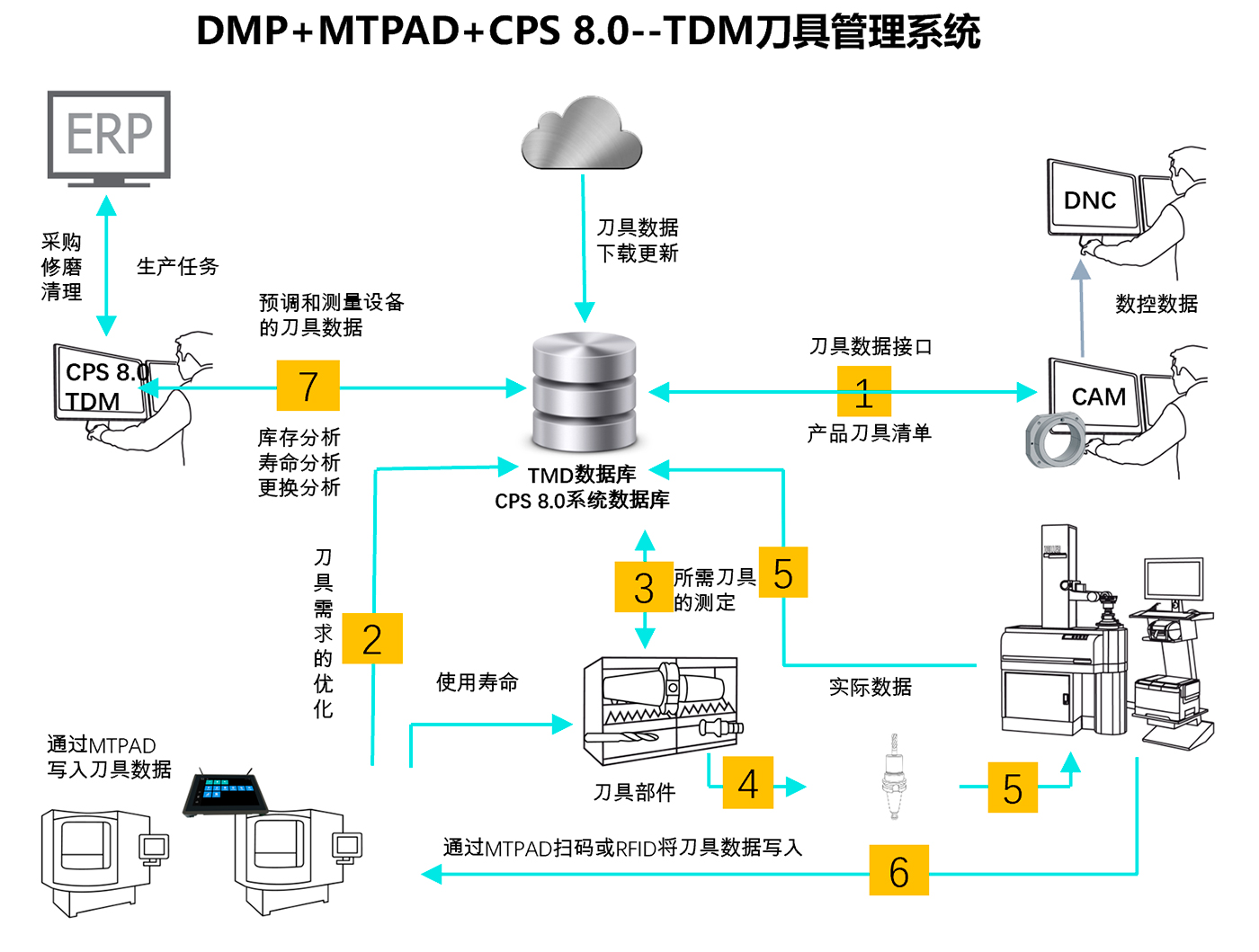

Tool Data Management (TDM)
The TDM tool data
management system integrates the independent tool magazine of a single
machine tool into the system server by monitoring the tool data of the
machine tool in real time, combining the tool inventory management and
workpiece production data.
Improve the management efficiency of the whole process of purchasing and
warehousing, tool distribution, tool installation, life monitoring, loss
and scrap in the production process

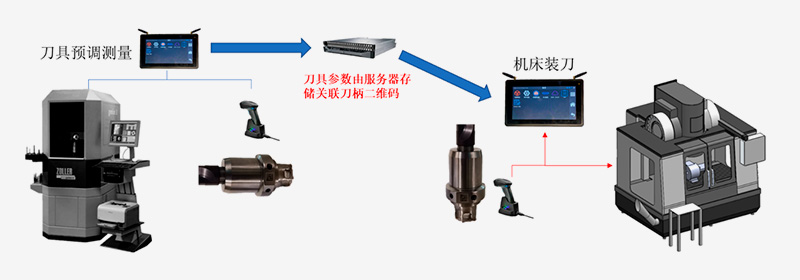

Scheme I 2D code scheme of tool holder
Function
description: the software system stores the 2D
code of tool holder and tool measurement data in
association
Implementation method:
Workflow: (This scheme needs to configure
servers and deploy local area networks)
1. Tool measurement, generating measurement data
2. HMI reads measurement data, manually scans 2D code of
tool handle, and server binds tool measurement data
3. The HMI on the machine tool side scans the 2D code of
the tool handle and associates it with the tool data in
the server. Input the tool position number of the machine
tool in the interface, and write the data into the machine
tool.

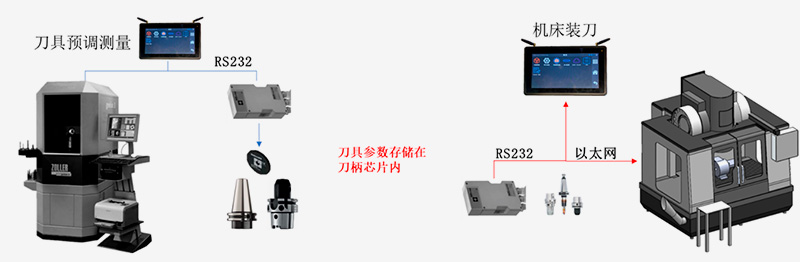

Scheme II RFID scheme of tool holder
Function
description: store the tool measurement data
through the tool handle RFID chip
Implementation method:
Workflow: (This scheme needs to configure the server and
does not need to deploy the local area network)
1. Tool measurement, generating measurement data
2. HMI reads the measurement data and writes the data to
the tool chip
3. The HMI on the machine tool side identifies the chip
data, the interface inputs the tool position number of the
machine tool, and the data is written into the machine
tool (the data of the machine number and the position
number to be installed on the tool handle can be defined
in advance in the chip to realize data
verification)
Why choose us
01
The company's technicians account for 70%. They have rich technical experience, understand the customer's workshop business and pain points, and can develop targeted solutions for different processing scenarios and implement them.
02
The product module is highly standardized and can be deployed quickly. At the same time, it can be customized and developed according to personalized needs, and its function configuration is flexible.
03
DMP data collection platform has strong compatibility and rich project experience. More than 50000 processing equipment have been collected, and the EMES project has served more than 200 customers.
04
A total of 15 offices nationwide implement localized services, which can quickly reach the customer's site and achieve accurate services.
Who is suitable for this product
Machining production enterprises, involving automobile, rail transit, engineering machinery, aerospace, military, medical, 3C, shipbuilding and other industries
